Overview

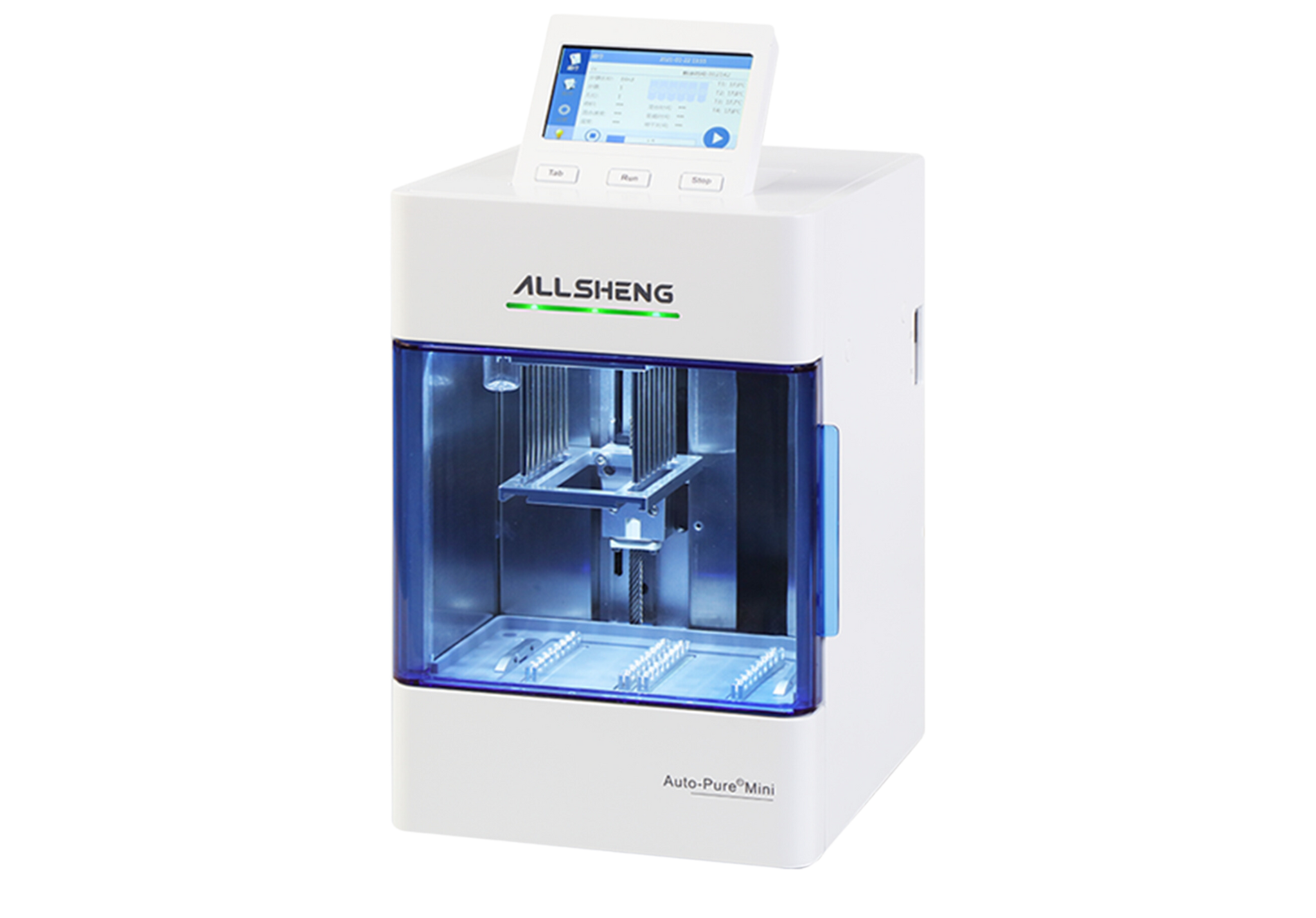

Auto-Pure Mini Automatic Nucleic Acid Purification System
Auto-Pure Mini automatic nucleic acid purification system is a product that is further miniaturized on the basis of the existing nucleic acid extractor. The overall volume of the instrument is only about one-fourth of the common nucleic acid extractor on the market. Although the size of the instrument has been reduced, it has not shrunk in performance, meeting the extraction requirements of common nucleic acid extraction reagents. Moreover, the instrument has the function of unlimited data transmission. With the mobile phone APP, it can realize the remote editing and transmission of the instrument's program and real-time view of the running log
Features
Fully Automated
Applicable to shrimp tissue, larvae, water, and soil
Specifications
| Performance | Specification |
|---|---|
| Sample Throughput per Run | 1-16 |
| Process Volume | 20-1000 μL |
| Consumable | 8-tip comb, 96 deepwell plate/single test strip |
| Principle/Working Mode | Magnetic bead method, magnetic rod method / up and down mixing |
| Stability | CV ≤ 3% |
| Collection Efficiency | >95% |
| Heating for Lysis/Elusion Tube | Ambient Temperature - 120°C |
| Operation | 4.3-inch touch screen, 3 shortcut keys, external mouse |
| Storage Capacity | Preset 6 programs, max store 100 programs |
| Protocol Management | Create, edit, delete, protocol mode |
| Extension Interface | Standard USB, Ethernet port, Wi-Fi |
| Pollution Control | Fan exhaustion |
