Overview

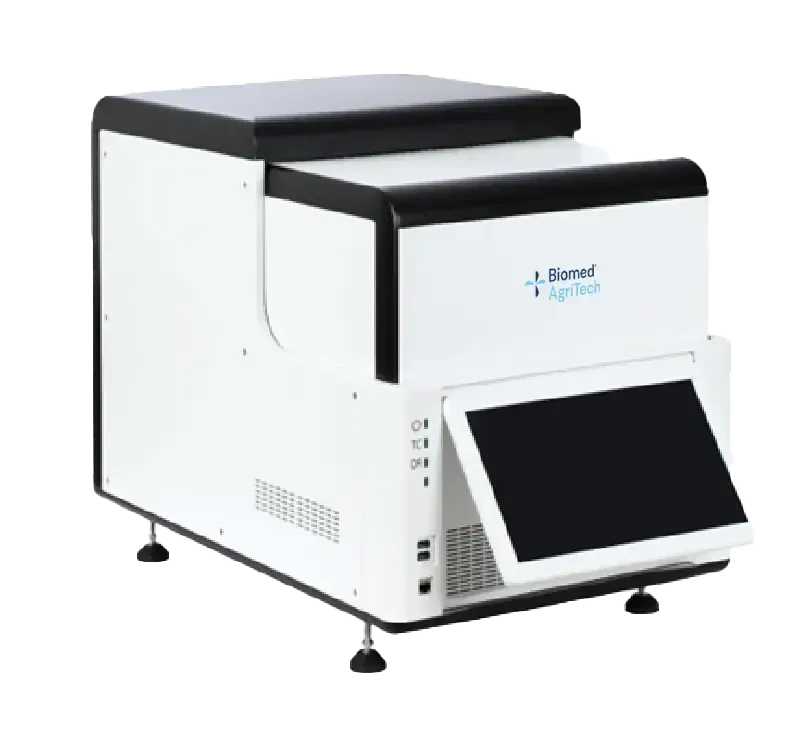

BA32 All in One Digital PCR System
Biomed Agritech's cutting-edge BA32 series of digital PCR system represents a seamless fusion of droplet generation, PCR thermal cycling, and fluorescence signal analysis within a singular, advanced device. Contrasting Biomed Agritech's previous generation DropX individual digital PCR system, the BA32 series seamlessly unites the PCR Amplifying Apparatus and the Biochip Scanner into a harmonious whole, achieving true fully automatic integration following the introduction of nucleic acid samples.
Once the BA32 series is loaded with digital PCR cartridges, the entire process proceeds without the need for additional manual interventions. This system is devoid of aerosol contamination, exhibits compatibility with third-party reagents, and serves as a formidable ally in advancing your research pursuits
Features
Latest Generation PCR Technology
Direct Quantification
Early Detection
Integrated Analysis
Specifications
| Performance | Specification |
|---|---|
| Droplets per Reaction | 20,000 |
| Droplets Volume | <1nL |
| PCR Thermal Cycling | 40 cycles in <90 minutes (Max heating 10°C/s, Max cooling 6°C/s) |
| Patent Technology | Mono Flex™ Droplet Generation Technology, Universal Macro™ Microfluidic Flat Heating Technology |
| Sample Type | All types of nucleic acids |
| Sample Preparation | Manually load samples and droplet generation oil Compatible with RainSure's fully automatic sample preparation workstation (automated nucleic acid extraction and digital PCR cartridge loading) No manual operation required |
| Sample Throughput per Run | 4-32 samples/run |
| Detection Method | CMOS, able to identify negative droplets without the need for reference dye |
| Sensitivity | Single-copy Detection |
| Dynamic Range | 5 logs |
| Quantification Precision | ±10% |
| Dimension | 500(W)*750(D)*600(H)mm |
| Weight | ≤50kg |
