Overview

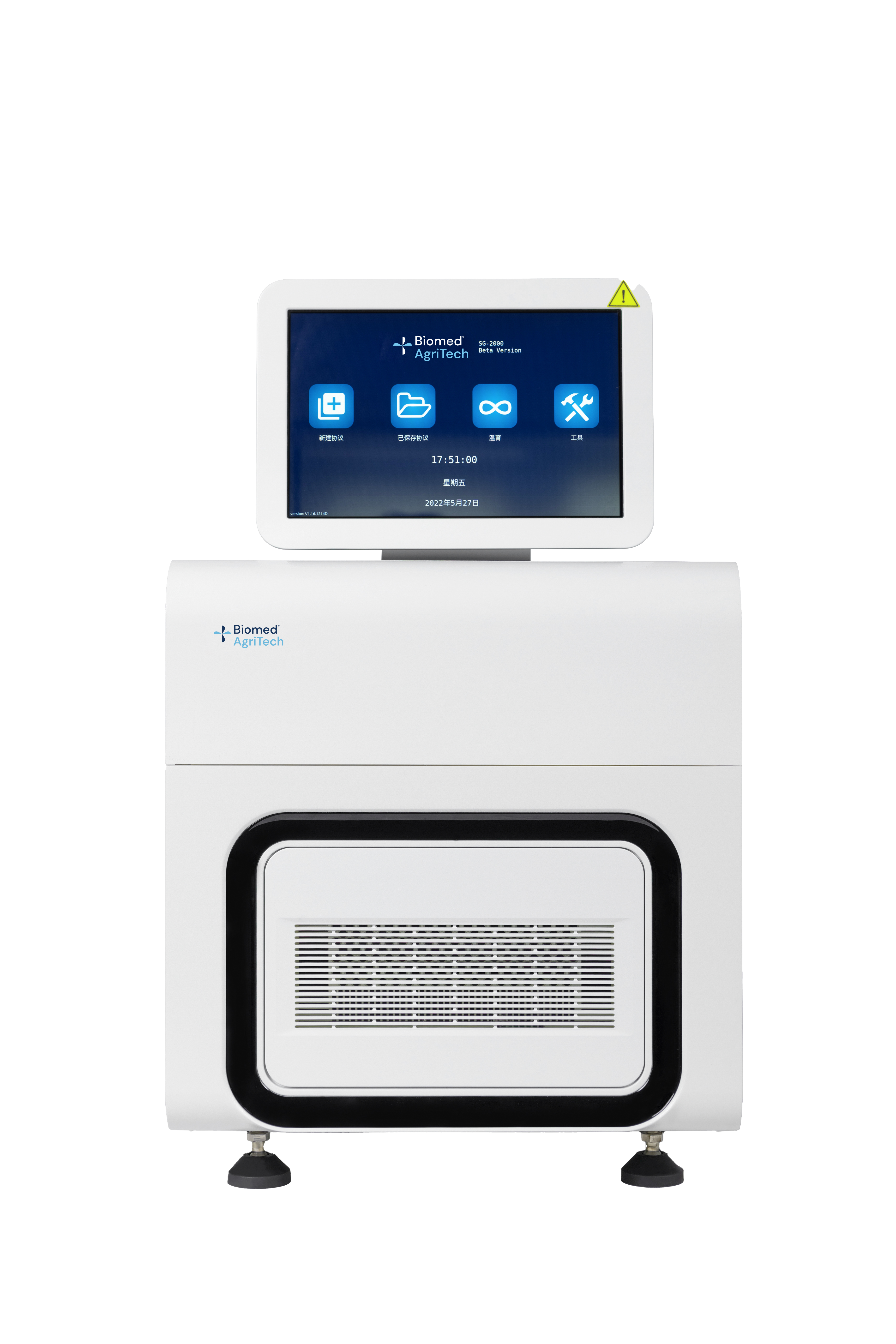

Sample Prep Station SG2000
Sample Prep Station SG-2000, using patented microfluidic technology and unique reagent system, quickly achieves Poisson distribution of samples in droplet preparation process is fully automated with one-button operation. Adopt the international top performance temperature control parts, combined with Biomed Agritech temperature control management system, the integrated digital PCR cartridge, to achieve rapid amplification of the nucleic acid samples
Combines a high precision pressure controlled microfluidic system with a microfluidic cartridge to quickly and smoothly produce uniform microemulsion droplets. It can produce 20,000-30,000 droplets in 70s with stable and long-lasting performance: uniform droplet size, CV≤ ±3%, droplet diameter can be adjusted in the range of 70-110 microns according to user requirements. Adopt innovative flat surface heating design, to achieve rapid temperature raise and cooling down. The fastest heat ramp rate reaches 10 °C/s, the fastest cooling ramp rate reaches 6 °C/s. It is possible to complete 40 PCR thermal cycles within 45 minutes
Features
Latest Generation PCR Technology
Direct Quantification
Early Detection
Treatment Monitoring
Specifications
| Performance | Specification |
|---|---|
| Droplets per Reaction | 20,000-30,000 |
| Droplets Volume | <1nL |
| PCR Thermo Cycling | 40 PCR < 45 minutes (max heating 100°C/s, max cooling 60°C/s) |
| Workflow | Fast |
| Sample Throughput per Run | 16 & 32 |
Request for resources
View detailed information, instructions for use (IFUs), and other documents.
